Caps & Plugs
Thread Masking Plugs
Recommended for powder coating, ecoating, plating and anodising.

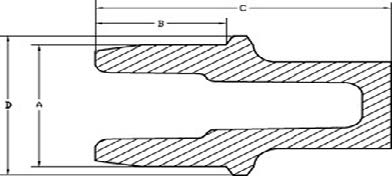

The STM plug has a flange that seals the first thread and a pull knob which allows its removal.
| Part Number | A (mm) | B (mm) | C (mm) | D (mm) | Qty/Bag |
|---|---|---|---|---|---|
| S-STM-M3*0.5LS | 2.69 | 5.18 | 20.87 | 3.43 | 1000 |
| S-STM-M4*0.7LS | 3.58 | 5.99 | 21.82 | 4.24 | 1000 |
| S-STM-M5*0.8LS | 4.57 | 5.56 | 20.75 | 5.21 | 500 |
| S-STM-M6*1 | 5.28 | 5.00 | 14.00 | 6.30 | 500 |
| S-STM-M6*1LS | 5.28 | 7.49 | 24.49 | 6.30 | 500 |
| S-STM-M8*1.25 | 7.19 | 5.00 | 12.24 | 8.41 | 500 |
| S-STM-M8*1.25LS | 7.19 | 7.49 | 22.76 | 8.41 | 500 |
| S-STM-M10*1.5 | 9.09 | 7.01 | 16.00 | 10.39 | 250 |
| S-STM-M10*1.5LS | 9.09 | 7.01 | 24.00 | 10.39 | 250 |
| S-STM-M12*1.75 | 10.82 | 8.79 | 20.12 | 12.42 | 250 |
| S-STM-M16*2 | 14.81 | 11.00 | 23.01 | 16.61 | 100 |
| S-STM-M20*2.5 | 18.39 | 13.00 | 28.50 | 20.60 | 100 |
| S-STM-M24*2LS | 22.76 | 16.00 | 37.85 | 24.05 | 50 |
