Caps & Plugs

Tapered Plugs

Tapered Plugs

Tapered plugs are recommended for powder coating, ecoating, anodising, plating and galvanising.

Produced from silicone they will with temperatures of up to 315°C and are reusable.

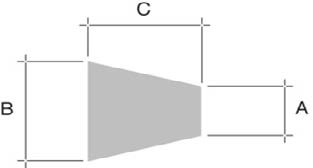

Tapered Plugs Dimensions



Part Number Thread A (mm) B (mm) C (mm) Qty/bag
S-TP-63-625   0.41 1.60 15.88 1000
S-TP-78-750   0.51 1.98 19.05 1000
S-TP-100-625   0.81 2.54 15.88 1000
S-TP-100-1000   0.81 2.54 25.40 1000
S-TP-125-625 M3 1.60 3.18 15.88 1000
S-TP-177-591   1.50 4.50 15.01 1000
S-TP-187-394   2.79 4.75 10.01 1000
S-TP-187-625 M4 1.60 4.75 15.88 1000
S-TP-187-750 M4 1.60 4.75 19.05 1000
S-TP-188-2200   1.19 4.78 55.88 1000
S-TP-197-1100   1.19 5.00 27.89 1000
S-TP-200-750 M4 1.60 5.08 19.05 1000
S-TP-216-1500   1.19 5.49 38.10 1000
S-TP-250-750 M5 3.18 6.35 19.05 1000
S-TP-250-1000 M5 3.18 6.35 25.40 1000
S-TP-276-787   3.00 7.01 19.99 1000
S-TP-315-787   3.99 8.00 19.99 1000
S-TP-343-625 M6 4.78 8.71 15.88 1000
S-TP-343-1000 M6 4.78 8.71 25.40 1000
S-TP-354-984   4.50 8.99 24.99 1000
S-TP-375-500 M8 6.35 9.53 12.70 1000
S-TP-375-750 M8 6.35 9.53 19.05 1000
S-TP-375-1250   3.18 9.53 31.75 1000
S-TP-393-787   6.00 9.98 19.99 1000
S-TP-394-1890   5.00 10.01 48.01 500
S-TP-433-1063   8.00 11.00 27.00 500
S-TP-437-1000 M10 6.35 11.10 25.40 500
S-TP-438-688   8.74 11.13 17.48 500
S-TP-472-748   8.99 11.99 19.00 500
S-TP-473-787   7.90 12.01 19.99 500
S-TP-487-748 M12 8.99 12.37 19.00 500
S-TP-500-813   7.92 12.70 20.65 500
S-TP-500-1000   7.90 12.70 25.40 500
S-TP-500-2000   3.20 12.70 50.80 500
S-TP-512-984   8.99 13.00 24.99 500
S-TP-562-1125   7.95 14.27 28.58 500
S-TP-563-1000 M14 9.53 14.30 25.40 500
S-TP-591-787   11.00 15.01 19.99 500
S-TP-594-1000   10.31 15.09 25.40 500
S-TP-625-813 M16 11.10 15.88 20.65 250
S-TP-656-1000   12.70 16.66 25.40 250
S-TP-669-1000 M18 13.00 16.99 25.40 250
S-TP-687-1000   11.13 17.45 25.40 250
S-TP-709-787   14.00 18.01 19.99 250
S-TP-748-1000 M20 14.27 19.00 25.40 250
S-TP-787-1000   15.88 19.99 25.40 250
S-TP-812-1000   15.88 20.62 25.40 250
S-TP-925-1000   19.05 23.50 25.40 100
S-TP-938-1000   18.26 23.83 25.40 100
S-TP-945-750   19.20 24.00 19.05 100
S-TP-946-1181   18.01 24.03 30.00 100
S-TP-990-795   22.40 25.15 20.19 100
S-TP-1024-1000   19.99 26.01 25.40 100
S-TP-1063-1000   23.01 27.00 25.40 100
S-TP-1100-1000   23.83 27.94 25.40 100
S-TP-1181-1000   27.79 30.00 25.40 100
S-TP-1220-1181   24.99 30.99 30.00 100
S-TP-1260-1000   26.00 32.00 25.40 100
S-TP-1338-1000   27.00 33.99 25.40 100
S-TP-1438-1000   30.18 36.53 25.40 100
S-TP-1456-1000   30.18 36.98 25.40 100
S-TP-1496-1378   30.99 38.00 35.00 100
S-TP-1531-1000   31.75 38.89 25.40 100
S-TP-1615-1378   34.01 41.02 35.00 50
S-TP-1625-1000   33.35 41.28 25.40 50
S-TP-1688-1000   35.71 42.88 25.40 50
S-TP-1750-1000   37.31 44.45 25.40 50
S-TP-1813-1000   38.10 46.05 25.40 50
S-TP-1929-1575   41.00 49.00 40.01 50
S-TP-1969-1000   41.28 50.01 25.40 50
S-TP-2063-1000   44.45 52.40 25.40 25
S-TP-2165-1575   46.99 54.99 40.01 25
S-TP-2203-1000   47.63 55.96 25.40 25
S-TP-2362-1772   50.00 59.99 45.01 25
S-TP-2469-1000   50.01 62.71 25.40 25
S-TP-2500-1000   53.98 63.50 25.40 25
S-TP-2688-1000   57.94 68.28 25.40 25
S-TP-2953-1375   61.93 75.01 34.93 25
S-TP-3500-1500   76.20 88.90 38.10 10
S-TP-4000-1500   82.55 101.60 38.10 10
S-TP-5000-2000   88.90 127.00 50.80 5
