Caps & Plugs
Flange Hollow Plugs
These all purpose plugs can be used as a plug or cap for powder coating, anodising, plating and ecoating.
The are ideal for masking the earth area around a stud and through holes.

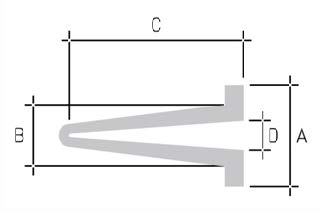

| Part number | A (mm) | B (mm) | C (mm) | D (mm) | Qty/Bag |
|---|---|---|---|---|---|
| S-CC-250-130 | 12.70 | 6.35 | 23.01 | 3.30 | 500 |
| S-CC-316-216 | 12.70 | 8.03 | 25.40 | 5.49 | 500 |
| S-CC-335-177 | 15.88 | 8.51 | 25.40 | 4.50 | 500 |
| S-CC-394-197 | 16.51 | 10.01 | 27.99 | 5.00 | 500 |
| S-CC-400-230 | 16.13 | 10.16 | 27.94 | 5.84 | 500 |
| S-CC-551-315 | 19.05 | 14.00 | 35.99 | 8.00 | 250 |
| S-CC-689-453 | 24.89 | 17.50 | 38.10 | 11.51 | 250 |
| S-CC-767-532 | 27.94 | 19.48 | 51.03 | 13.51 | 100 |
| S-CC-819-583 | 25.40 | 20.80 | 49.00 | 14.81 | 100 |
| S-CC-866-630 | 30.99 | 22.00 | 53.01 | 16.00 | 100 |
