Caps & Plugs

Flange Caps

Flange Caps are recommended for powder coating, ecoating, anodising, plating and galvanising.

Used to cover studs or threads whilst leaving an area around the base for grounding purposes.

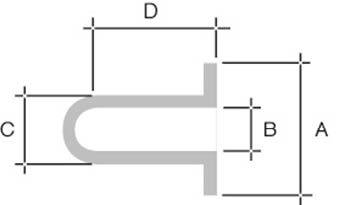

Part Number	Thread	A (mm)	B (mm)	C (mm)	D (mm)	Qty/Bag
S-WC-100-500		12.70	2.54	5.72	25.40	500
S-WC-106-472	M3	11.99	2.69	6.20	25.40	500
S-WC-125-500		12.70	3.18	6.40	25.40	500
S-WC-140-500	M4	12.70	3.56	8.20	25.40	500
S-WC-146-472		11.99	3.71	6.60	25.40	500
S-WC-156-500		12.70	3.96	8.00	25.40	500
S-WC-172-500	M5	12.70	4.37	9.70	25.40	500
S-WC-180-600	M5	15.24	4.57	8.00	25.40	500
S-WC-220-590	M6	14.99	5.59	9.09	25.40	250
S-WC-220-787	M6	19.99	5.59	8.71	25.40	250
S-WC-240-500		12.70	6.10	9.09	25.40	250
S-WC-295-500	M8	12.70	7.49	10.49	25.40	250
S-WC-295-700	M8	17.78	7.49	10.49	25.40	250
S-WC-300-675		17.15	7.62	10.59	25.40	250
S-WC-375-825	M10	20.96	9.53	13.00	38.10	250
S-WC-453-984	M12	24.99	11.51	16.51	38.10	250
S-WC-460-700		17.78	11.68	14.50	25.40	250
S-WC-500-1000		25.40	12.70	15.39	25.40	100
S-WC-615-1180	M16	29.97	15.62	20.70	38.10	100
S-WC-780-1475		37.47	19.81	24.69	25.40	100
